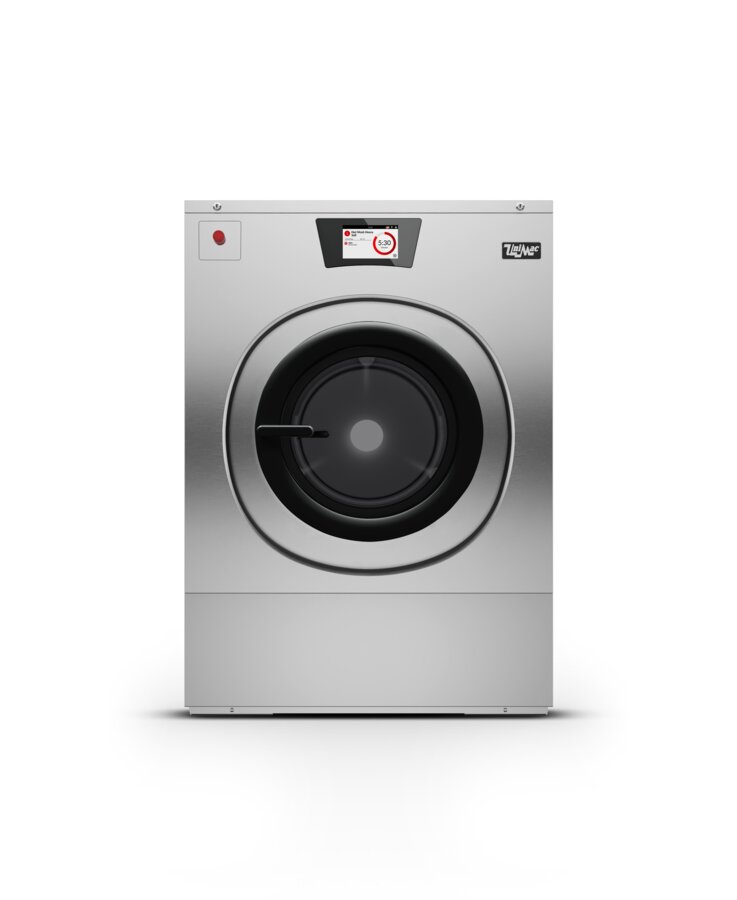

UniMac UY Series Softmount Commercial Washer-Extractors

Pick a capacity to get started

Click a capacity below to see all available configurations. Small UYTs (20-70 lb) and Large UYTs (100-275 lb) have somewhat different feature sets — both are detailed in the configurations.

What makes UY softmount different

Internal suspension that lets you install on upper floors, premium extract speeds, and a forward-tilting unloading option on the larger machines.

Softmount engineering

Internal Suspension — Install Where Hardmount Cannot Go

UY Series machines have an internal suspension system that absorbs vibration during high-G extract. The floor structure doesn't need to anchor extreme forces. That means:

• Upper-floor installs are routine — no foundation pit, no floor reinforcement required
• Quieter operation — vibration stays inside the machine, not transmitted to the building
• Vibration-sensitive structures (older buildings, mixed-use, hospitals) handled cleanly
• Higher G-force possible: up to 400G on small UYTs, 350G on large — shorter dry times

Forward Tilting System · UYT 180/230/275 option

Power-Operated Tilt for Industrial-Scale Operations

On the largest UYTs (180/230/275 lb), the Forward Tilting System rotates the machine forward to make unloading dramatically faster. The labor savings on a high-volume industrial OPL running multi-shift operations are significant.

• Power-operated forward tilt at end of cycle
• Faster unloading vs reaching into a horizontal cylinder
• Reduces operator strain and back-injury risk
• Optional add-on (SKU position 10 = F) — UYT180, UYT230, UYT275 only
• Pricing varies by capacity — included in quote

Why buy from HM Commercial Laundry?

• Authorized UniMac dealer — every UYT machine is genuine UniMac, factory-warranted, with full Alliance Laundry Systems parts pipeline support
• 37+ years in commercial laundry — softmount installs for hospitals, hotels, high-volume OPL operations
• Site survey before quote — we confirm floor structure, drain, utilities, install path before you order
• Local installation team — same NJ-based techs install and service. Familiar faces, faster response.
• 24/7 emergency service — our on-call line is a real person within minutes
• Honest sizing consultation — UYT is the right answer for upper-floor installs and high-G operations; we will tell you if a hardmount UWT is the better economic choice

Industry applications

• Healthcare — hospitals, surgical centers. Vibration-sensitive installs in upper floors of hospital buildings.
• Hotels & hospitality — premium hotels, resort properties with upper-floor OPL rooms.
• Fire departments — UYT 40-70 lb configurations for turnout-gear cleaning where high-G extract is desired.
• On-premise laundry (OPL) — sized from 200 lb/day boutique OPL to 5,000+ lb/day industrial.

Frequently Asked Questions

What is a softmount washer-extractor and why would I choose one over hardmount?

A softmount machine has an internal suspension system that absorbs vibration during high-G extract. This means it can be installed on upper floors or vibration-sensitive structures without foundation work or anchoring — something hardmounts cannot do. Softmounts also typically deliver higher extract G-forces (UYT goes up to 400 G), which means shorter dry times and lower drying utility costs. The trade-off is a higher up-front cost vs hardmount.

Are these washer-extractors for residential use?

No. UniMac UYT softmount washer-extractors are commercial-grade equipment built for institutional and industrial laundry operations. They are sold for commercial use only and are not suitable for residential homes.

What is the difference between small UYT (20-70 lb) and large UYT (100-275 lb)?

Small UYTs (20-70 lb) deliver 400G extract (350G on 70 lb), water re-use capability, automatic door unlock, and 4-compartment soap box. Large UYTs (100-275 lb) deliver 350G extract, dual drain, 3rd water inlet, fast fill valves standard, 5-compartment soap box, and 3 air-operated water inlets (180+). UYT 180+ also offers an optional Forward Tilting System for easier unloading.

What is the Forward Tilting System and which machines have it?

The Forward Tilting System is a power-operated tilt mechanism that rotates the machine forward to make unloading large, heavy loads much faster and reduce operator strain. It's an optional add-on available on UYT180, UYT230, and UYT275 (SKU position 10 = F). For high-volume institutional and industrial laundries running multi-shift operations, the labor savings are significant.

Which voltage do I need?

Voltage selection depends on what is available at your facility. Small UYTs (20-70 lb) offer X (200-240V/1Ph) standard or N (440-480V/3Ph) upgrade. Large UYTs offer Q (200-240V/3Ph), P (380-415V/3Ph), N (440-480V/3Ph), M (208-240V/60Hz/3Ph for 180+), or 4 (400-480V/60Hz/3Ph for 180+). If you are not sure what you have, call us at (732) 681-0500.

What is the difference between Prep Steam, Direct Steam, and No Heater?

No Heater (0): the machine has no built-in heater — bath temperature comes from your incoming hot water supply. Prep Steam (P): no built-in heater but plumbed and prepared for direct steam injection if you decide to add it later. Direct Steam (D): factory-installed direct steam injection for fast heating during the wash cycle. Direct Steam is the right answer for most institutional operations where you have building steam available.

Does the price include freight and installation?

No. Prices shown are for the equipment only. Freight and installation are quoted separately based on your facility location, site conditions, and utility hookup requirements. Call (732) 681-0500 for a complete delivered-and-installed quote.

Can a softmount be installed on an upper floor?

Yes — that's the primary advantage of softmount over hardmount. The internal suspension absorbs vibration so the floor structure doesn't need to anchor extreme G-forces. We still do a site survey to confirm floor structural capacity, drain location, and utility availability before order.

What warranty comes with a UniMac UYT softmount?

Every UYT machine includes a 3-year limited parts warranty, plus a 5-year limited warranty on the frame and cylinder shaft assembly, and a 5-year limited warranty on seals and bearings. HM Commercial Laundry is the authorized warranty service provider for NJ, eastern PA, NYC, and Delaware.

How long is the lead time?

Standard configurations on common capacities (20-100 lb) typically ship in 4-8 weeks from Alliance Laundry Systems. Larger industrial machines (135-275 lb) and Forward Tilt configurations can run longer. We confirm current lead time at quote.

Do you offer financing or leasing?

Yes. Through Alliance Laundry Systems' preferred lenders we coordinate equipment loans, capital leases, and operating leases.
