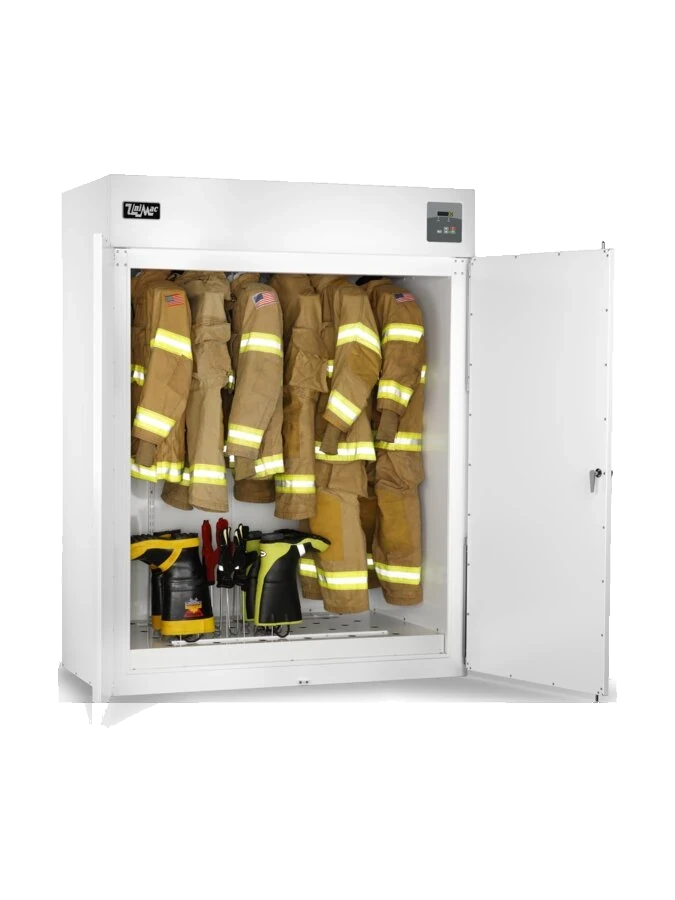

UniMac UTGC turnout-gear drying cabinet with gear loaded

UTGC Drying Cabinet

Commercial use only. Prices are machine-only — freight and installation are quoted for the site. Not NFPA certified.

H7S · NFPA 1850 care · six sets

$9,245

This is the UniMac UTGC turnout-gear drying cabinet. Six full sets plus gloves and boots. H7S control programmed for NFPA 1850 care. The wash is NFPA 1851 in an extractor — this cabinet dries gear. It is not NFPA certified.

The live table is $9,245 on all four voltages (208/240, 1-phase and 3-phase). Freight and installation are separate. Call (732) 681-0500 with the station panel.

Wash gear in a dedicated Fire-configuration cabinet hardmount or a UniLinc fire-cycle pocket machine. Do not share that cylinder with kitchen rags. See cabinet hardmount and fire-department PPE.

Q3 UniMac rebate — qualifying UCT washers (Fire configuration): $400–$800 per unit, + 0% financing, stackable. Rebates apply to listed models only. Order by Sept 15, 2026 — final weeks. Rebate flyer · Terms.

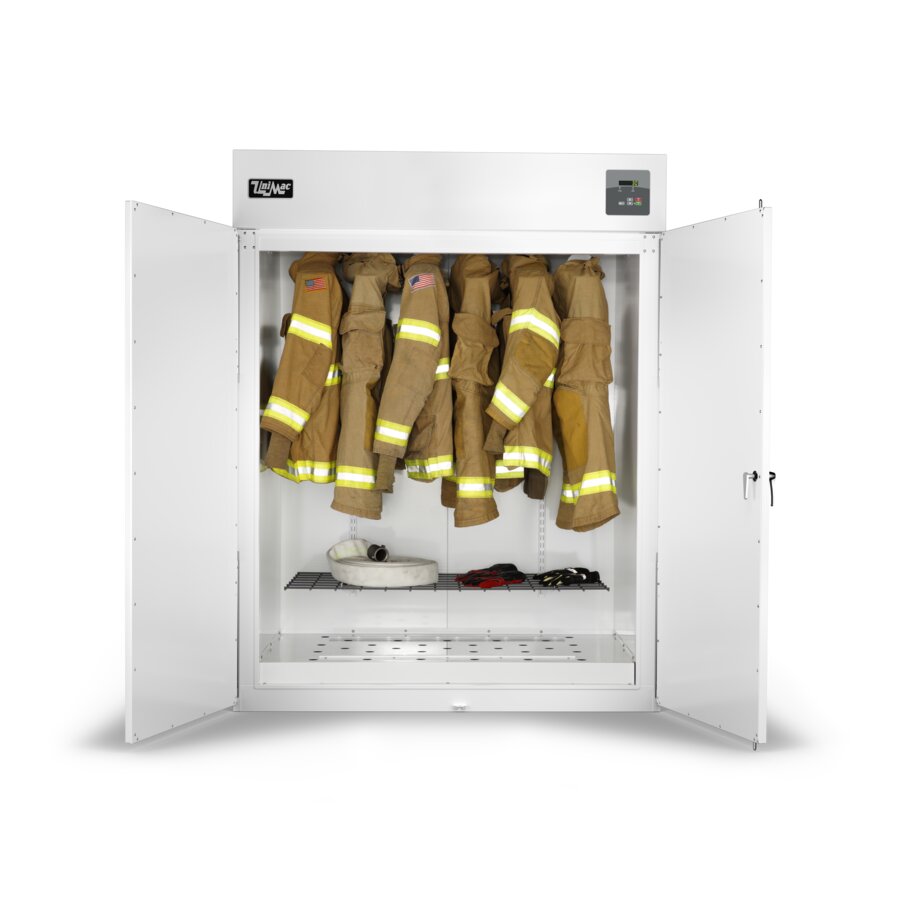

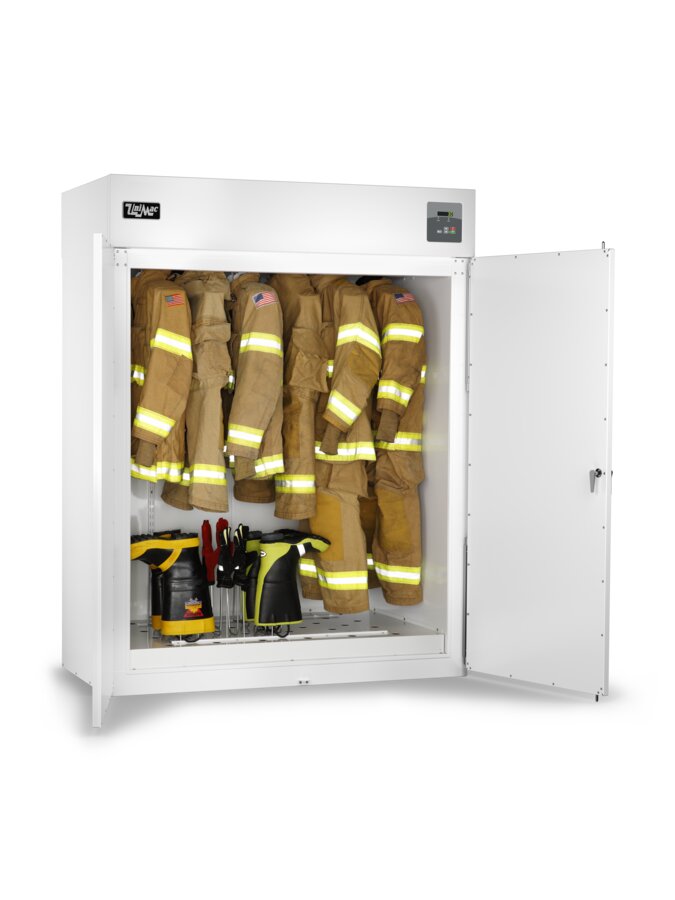

UniMac UTGC Firefighter PPE Drying Cabinet with turnout gear loaded

One cabinet, four voltage configurations

Same cabinet, same control, same price on all four SKUs — the only choice is the voltage that matches your station's electrical service.

$9,245

Your price (same across all 4 voltage configurations) · Equipment only · Freight & install separate

Request Quote Call (732) 681-0500

4 voltage configurations

The complete list — all four UTGC SKUs, with HM Commercial Laundry pricing.

SKU / Model #	Capacity	Voltage / Phase	Your Price	Quote
UTGC6ENG4402W01	6 sets turnout gear	208V / 50-60Hz / 1 Phase	$9,245	Request Quote
UTGC6ENG4502W01	6 sets turnout gear	208V / 50-60Hz / 3 Phase	$9,245	Request Quote
UTGC6ENG6402W01	6 sets turnout gear	240V / 50-60Hz / 1 Phase	$9,245	Request Quote
UTGC6ENG6502W01	6 sets turnout gear	240V / 50-60Hz / 3 Phase	$9,245	Request Quote

Standard features (included on all 4 SKUs)

✓Holds 6 full sets of firefighter turnout gear
✓H7S Control (M-Series) — NFPA-programmed drying and cooling cycles
✓5 standard cycles built in
✓Operator-adjustable time settings
✓Glove/Boot rack included — holds up to 15 gloves or boots
✓Doors open at full 180° angle for easy loading and unloading
✓Unique rack design engineered for maximum water removal
✓Adjustable leveling legs
✓Electrostatically-applied paint for superior bonding and corrosion resistance
✓100% front-serviceable — no rear access required
✓Contributes to compliance with NFPA 1850 guidelines
✓Authorized UniMac dealer warranty and parts support — sold and serviced by HM Commercial Laundry

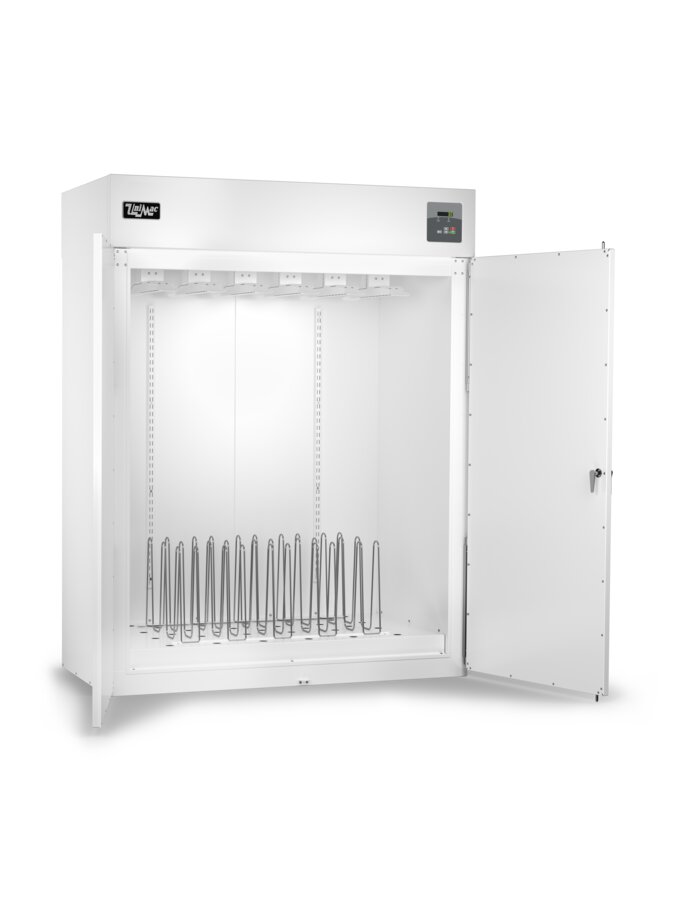

UniMac UTGC drying cabinet open showing internal racks

NFPA-Programmed Drying

H7S M-Series Control — NFPA Standards Built In

The H7S Control is the brain of the UTGC. It manages drying and cooling cycles programmed to meet NFPA standards for protective ensemble care — temperature limits, dwell times, cool-down cycles. Operators can adjust time settings to match their station's gear and operational needs.

5 standard NFPA-programmed cycles
Operator-adjustable time settings
Contributes to NFPA 1850 compliance
Pairs with NFPA 1851-compliant turnout-gear washer-extractors
Simple operator interface — easy training for new firefighters

Pair with NFPA 1851-compliant washing

The Complete Turnout Gear Care Workflow

Turnout gear care is a two-step process: cleaning (NFPA 1851) followed by drying (the UTGC's job). For a complete NFPA 1851-compliant turnout-gear care program, pair the UTGC with one of these UniMac washer-extractor configurations:

UCT040 Fire Configuration — 40 lb cabinet hardmount with custom fire industry cycles standard, Temperature Control Fill (capped at 105°F)
UCT060 Fire Configuration — 60 lb cabinet hardmount, same fire cycles
UWT Pocket Hardmount — Packages 1, 2, 3 include custom Fire Industry Cycles standard, configurable for NFPA 1851 turnout-gear cleaning

For the full fire department equipment workflow, see our Fire Department PPE Equipment page.

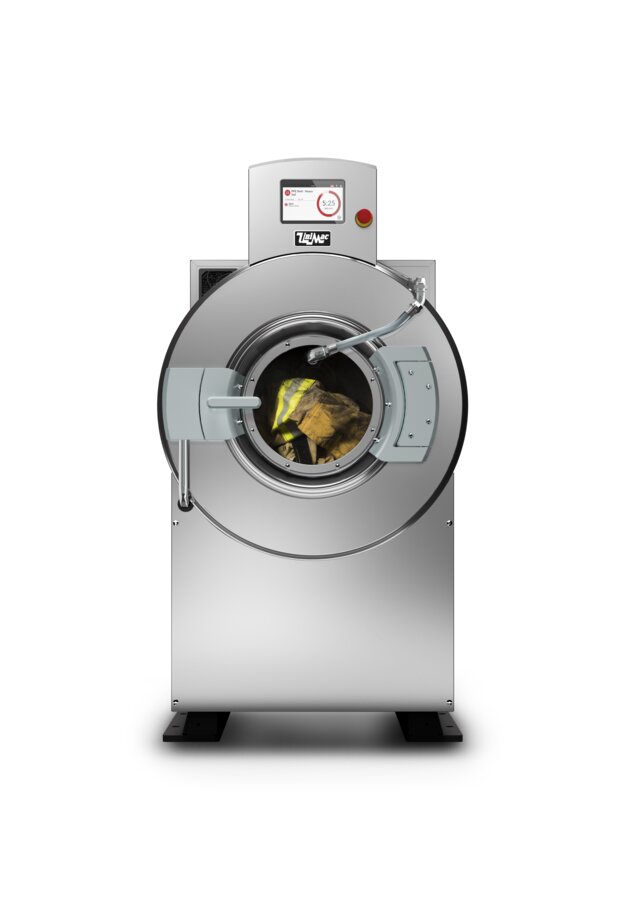

UniMac UW65 fire department configuration with turnout gear

Three dealer facts

Authorized Alliance pipeline We sell new UniMac through the authorized Alliance channel. The machine on the quote is the machine that ships.
The NJ crew installs what they sell Same shop, 647 Herman Road #3, Jackson. Same techs on the anchors and on the callback.
On-call Dispatch after the sale. Sunday night is a real person at (732) 681-0500.

Frequently asked questions

Is the UTGC NFPA certified?

No. We do not say NFPA certified. The H7S control is programmed for NFPA 1850 care. The wash process is NFPA 1851 in an extractor.

How many sets does it hold?

Six full sets of turnout gear plus gloves and boots.

What does it cost?

$9,245 on all four voltage SKUs in the live table. Equipment only.

Where is the wash done?

In an extractor — UCT Fire configuration or a UniLinc fire-cycle pocket machine. This cabinet dries.

Are these machines for a house?

No. Commercial fire-department use only.

Call (732) 681-0500 with capacity and voltage. Freight and installation are quoted for the site.

Spec Sheets & Brochures

Download official UniMac brochures and spec sheets for this product line. For specific delivered-and-installed pricing in NJ, eastern PA, NYC, or Delaware, call HM Commercial Laundry at (732) 681-0500.

PDF↓

UTGC Firefighter PPE Drying Cabinet Spec Sheet

Official UniMac document · Opens in new tab
